Soldering thermal testing
The In-situ Soldering BOX advances soldering thermal testing by visualizing the invisible dynamics of the soldering process in real time. This X-ray compatible thermal chamber provides a unique window into solder paste reflow, allowing for the continuous monitoring of solidification and void formation as they occur.

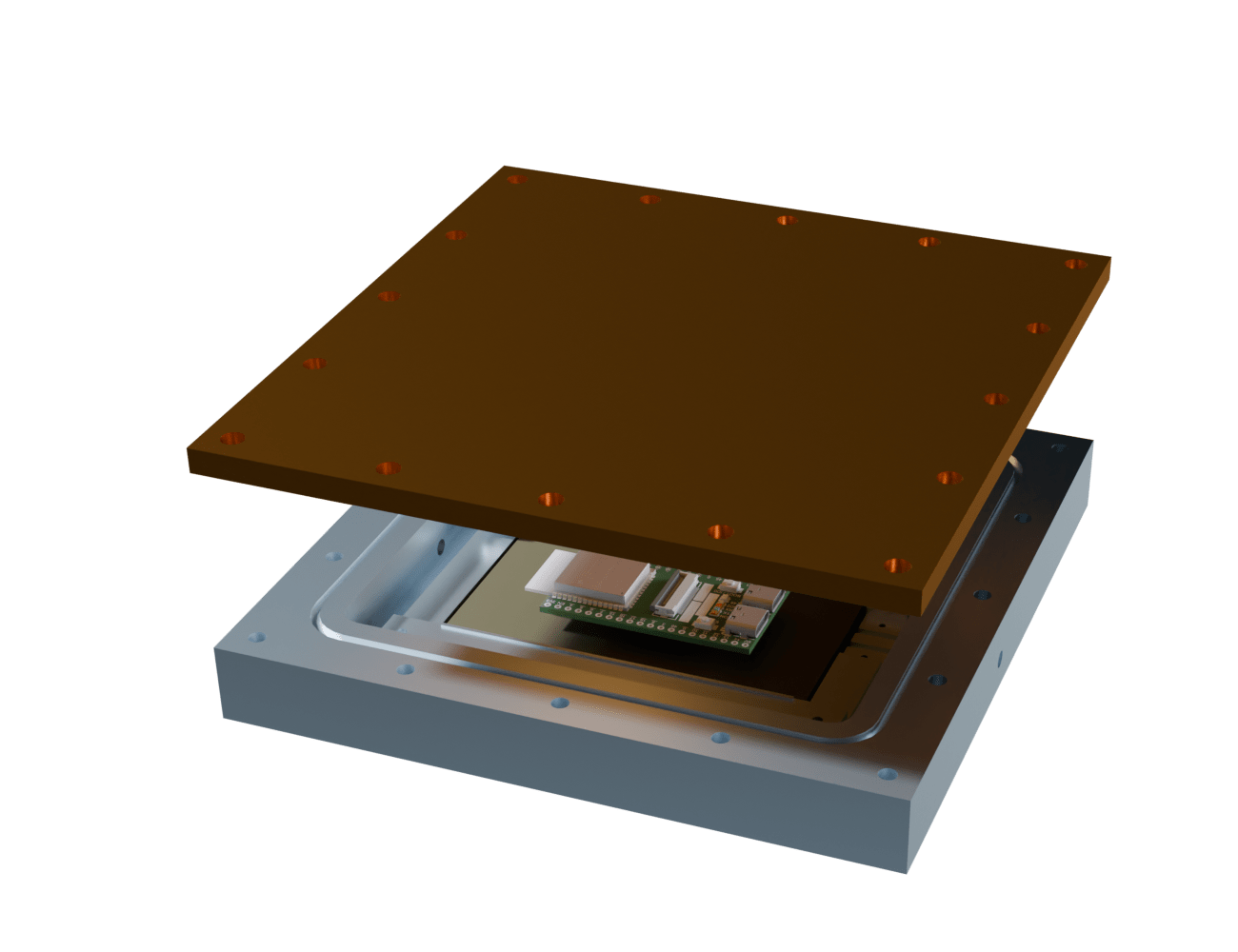

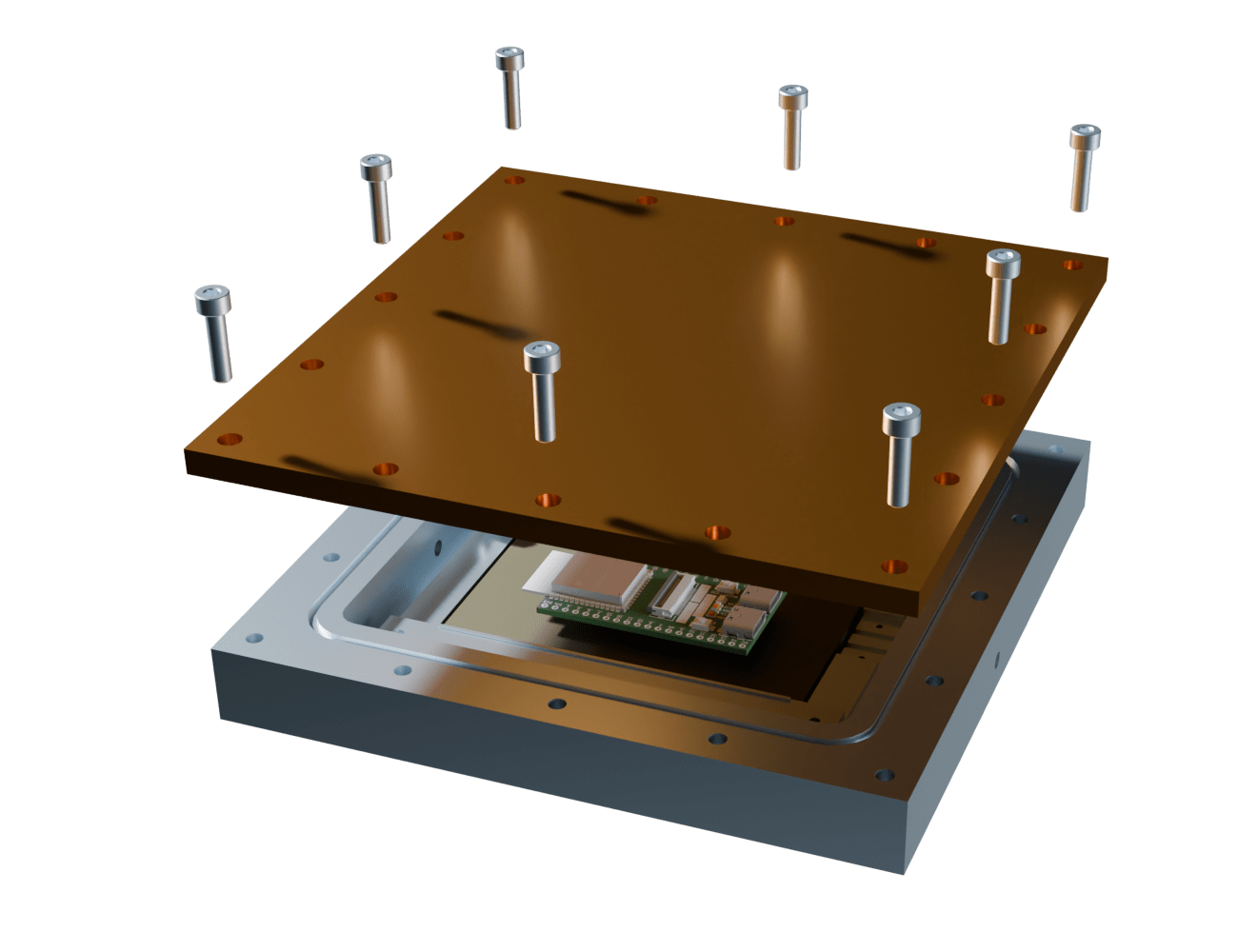

The In-situ Soldering BOX is designed to analyze solder joints using X-ray radiography. Consisting of a special chamber for simulating pressure and
a heating plate, it recreates the soldering thermal process during the X-ray analysis. Precise control over thermal profiles enables the simulation of the entire reflow cycle, while integrated pressure control facilitates the detailed study of joint quality and material behavior in real time.
DESIGNED FOR SOLDERING THERMAL PROCESS OPTIMIZATION
Soldering BOX
Environmental temperature and pressure control functions.
Parameters
| Max temperature | +300°C |
| Sample area | 90× 90 mm |
| Field of View | 150 × 150 mm |
| Dimensions | 160 × 160 × 60 mm |
| Heating | AIN substrate |
| Programmable heat profile | Yes |
| Speed of temp. change | ≤ 2°C/s |
| Pressure range | -65 kPA – + 230 kPa (relative) |
Package
Standard Package |
| In-situ Soldering BOX |
| Control unit |
| Flash Drive with Control Software |
The device and its equipment are delivered in packaging designed for safe transport and storage. The package contains other components for mounting.
Datasheet
- In preparation
We offer customisation of In-situ Soldering BOX based on your needs:
Consultation
Want to heat your samples to higher temperatures? Want to measure bigger samples? Want to simulate specific atmospheric conditions? Contact us!
Feasibility and proposal
Before project initiation, we run a feasibility study. Based on the agreed parameters, our R&D team develops a complete design concept in compliance with all relevant standards.
Realization
Once the design is approved, we proceed with engineering, prototyping, programming, testing, and system assembly.
Delivery and support
We deliver the completed system and support the installation. Additionally we offer ongoing technical support with your experiments.
