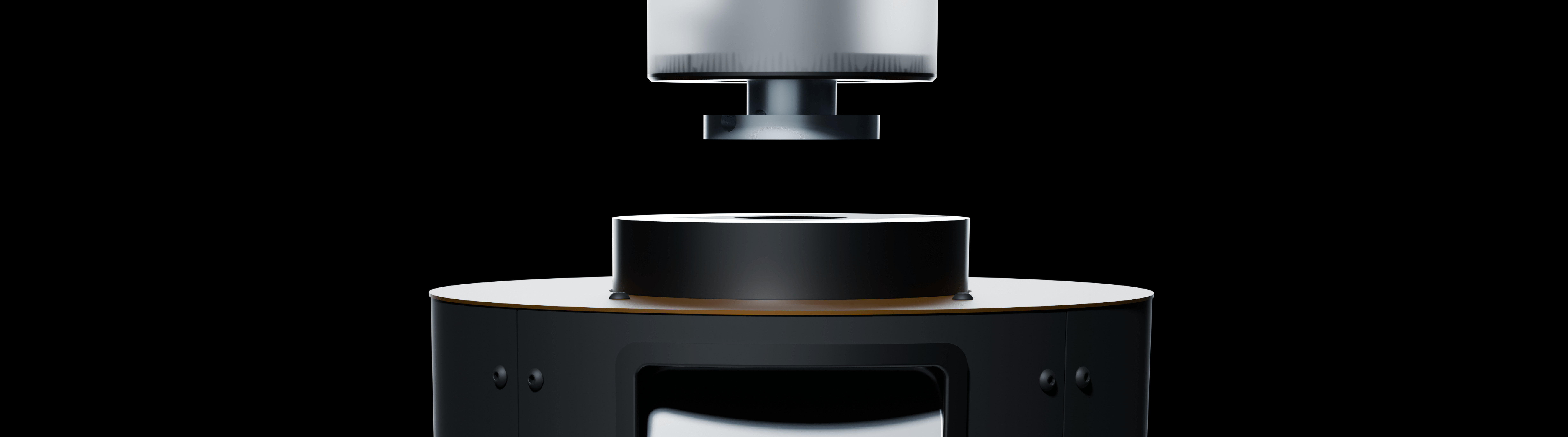

In-situ BOX

The In-situ BOX is used for high-quality, real-life conditions simulation during the μCT analysis. It combines the environment temperature control function and power supply function. It operates as an autonomous system with minimal mounting requirements.

In-situ BOX  is used to simulate real-life conditions of the samples during the CT analysis and opens up new possibilities for material and internal structure research. It has been designed specifically for CT analysis; its dimensions are adjusted to the CT cabinet, allows 360° rotation, and is compact and straightforward to control from outside of the CT cabinet.

DESIGNED FOR SIMULATING

REAL-LIFE CONDITIONS

Climate control

-30°C to +60°C

Modular

sample stages

In-situ BOX variations

Choose according to your application.

Thermal box

study the temperature effect on your samples

Battery box

simulate your battery lifecycle

Electric box

simulate space condition for your electronics

Thermal BOX

Environment temperature control function

In-situ BOX for μCT stations for real-life conditions simulation.

Parameters
Temperature range -30°C to +60°C
Sample area ø65×35 (Customisable per request)
BOX dimensions 200 mm × 200 mm × 405 mm (w/o control unit)
Weight 4.25 kg
Power supply 230V AC
Package
Standard Package
In-situ BOX
Control unit
Flash Drive with Control Software
Desktop Stand

The device and its equipment are delivered in packaging designed for safe transport and storage. The package contains other components for mounting.

Brochure
Videos

In preparation.

Battery BOX

Cycling (charging & discharging) function + environment temperature control function

In-situ BOX for μCT stations for real-life conditions simulation.

Parameters
Temperature range -30 to +60 °C
Maximal battery current 30 A
Sample specification 18650 battery without plastic cover (customizable per request)
Dimensions 200 mm × 200 mm × 405 mm (w/o control unit)
Weight 4.25 kg
Power supply type  230V AC
Packages
Standard Package
In-situ BOX
Control unit
Flash Drive with Control Software
Desktop Stand

The device and its equipment are delivered in packaging designed for safe transport and storage. The package contains other components for mounting.

Brochure
Videos

In preparation.

Electric BOX

Power supply function + environment temperature control function

In-situ BOX for μCT stations for real-life conditions simulation.

Parameters
Temperature range -30 to +60 °C
Max current/voltage 30 A/60 V
Sample area ø65×35 (Customisable per request)
Dimensions 200 mm × 200 mm × 405 mm (w/o control unit)
Weight 4.25 kg
Power supply type  230V AC
Packages
Standard Package
In-situ BOX
Control unit
Flash Drive with Control Software
Desktop Stand

The device and its equipment are delivered in packaging designed for safe transport and storage. The package contains other components for mounting.

Brochure
Videos

In preparation.
