Industrial CT Scanning
CactuX offers industrial CT scanning services for reliable internal inspection. Industrial CT scanning provides non-destructive 3D X-ray inspection for defect detection, metrology, and failure analysis. From high-resolution nano-CT scanning to dedicated micro CT scanning service workflows, we help manufacturers validate assemblies, improve quality, and accelerate product development.
X-ray technologies are the best option for advanced, non-destructive imaging in industrial applications. Digital radiography and CT scanning provide precise, high-resolution insights into internal structures. Without damaging or altering your sample, we are able to examine intricate components and details that may not be visible through traditional methods.
We’re here to provide accurate, high-quality imaging solutions tailored to your needs.
OUR SOLUTION
Samples
up to 50 kgs
dimensions from milimiters to 50 x 80 cm
Innovative testing solutions
In situ and 4D experiments
automated X-ray serial testing
Resolution
possible resolution 0.3 µm with Field of View min. 0.7 mm x 0.9 mm
Wide variety of outcomes
detailed STL models
images/videos/analysis reports
Find out more about the CT principle

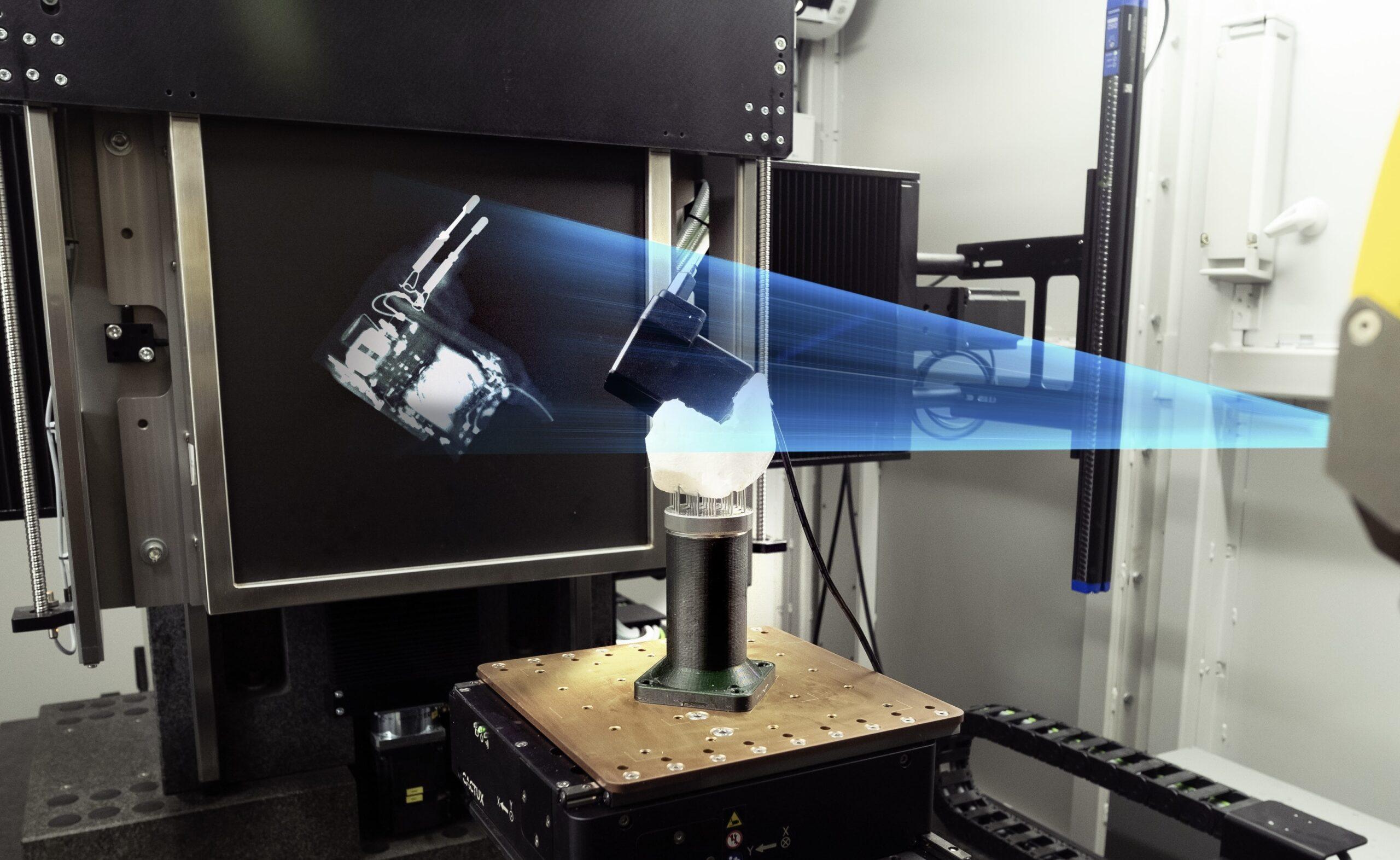

Industrial CT captures a series of X-ray images from different angles while the sample rotates around its axis. Subsequently using advanced reconstruction algorithms, it is possible to compute detailed cross-sectional slices. These slices together create a 3D digital volume.
Metrological validation
Internal and external inspection of parts for defect detection and measure dimensional deviations:
-
-
- High-precision measurements – Analysis of dimensions, porosity, and defects with micrometer accuracy. Analysis according to industrial standards.
- Quality control – Validation of parts against to 2D drawings or CAD models to to detect deviations and identify manufacturing issues.
-

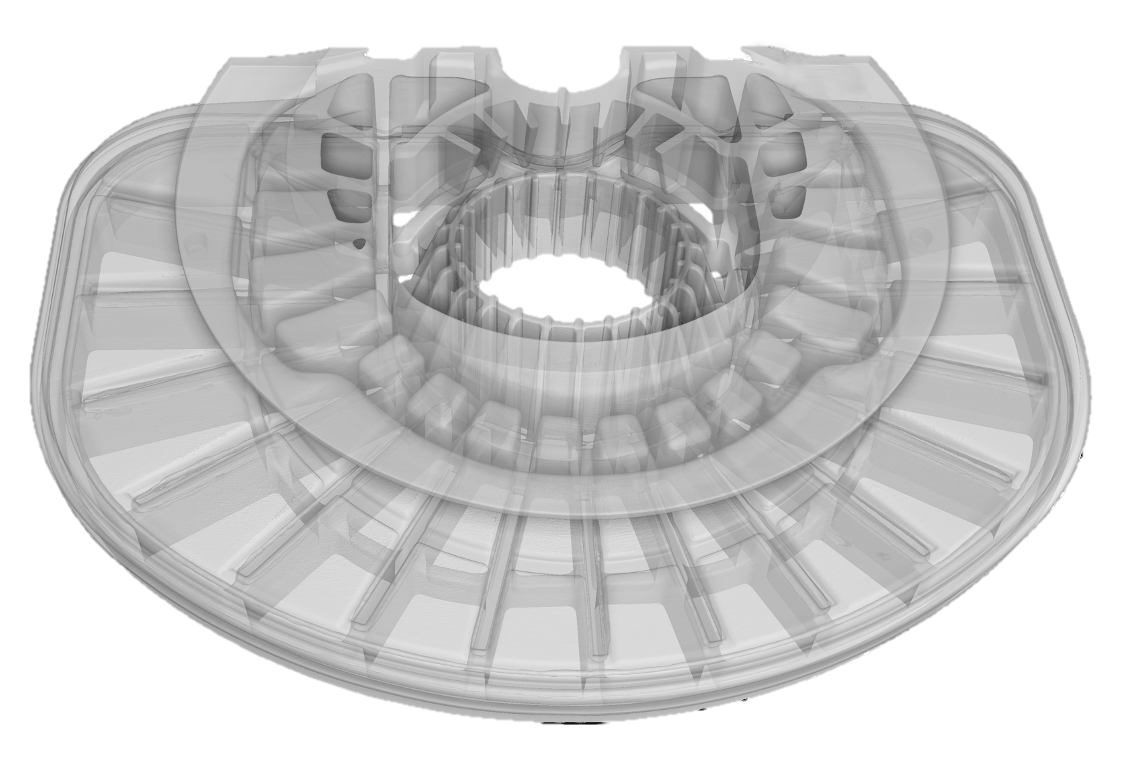

Reverse engineering
Precise digital reconstruction of complex parts without disassembly:
-
-
- Complete 3D digitization – Capturing external and internal geometries to create highly detailed digital 3D models without damaging the original part.
- Reconstruction of lost documentation – New technical drawings and CAD files generation for legacy or unavailable parts.
-

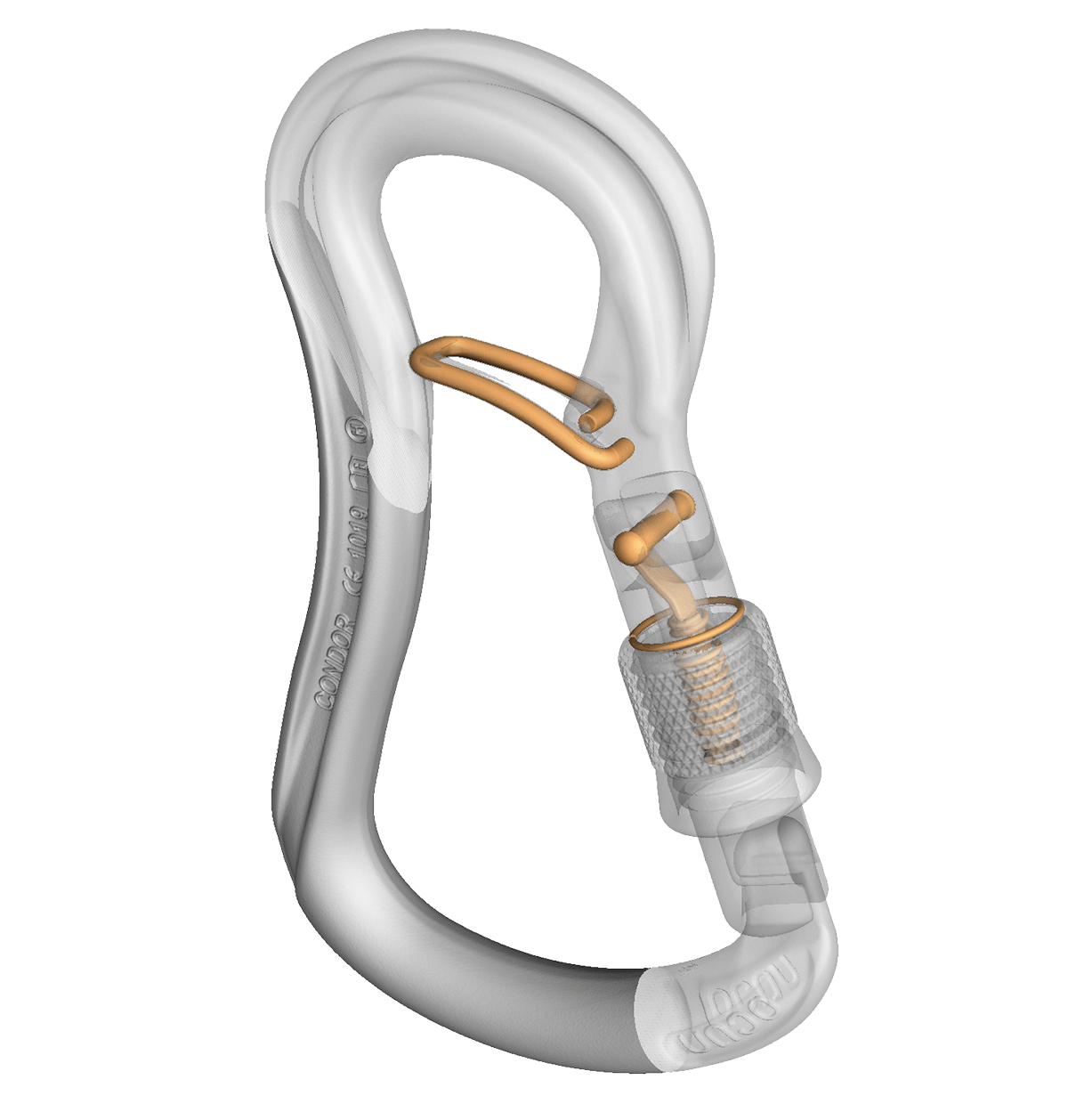

Components analysis
Complete view of a component’s internal structure, material distribution, and assembly quality:
-
-
- Assembly verification – Verification of solder joints, welds, bonds, and internal connections integrity without disassembly.
-
- Dynamic X-ray testing – Analysis of components under mechanical load, temperature variations, or operational conditions in real time.
-
Material inspection
Deep understanding of a material’s internal composition:
-
-
- Fiber orientation & density variations – Analysis of material distribution, detection of inconsistencies, and optimization of production quality.
- Dynamic & in-situ CT – Observation of material behaviour under stress, temperature changes, or mechanical load in real time.
-
Find out more about CT technology and its applications
4 Steps are all it takes:
Consult
Contact our experts via e-mail or phone to discuss your application and needs, and we’ll design the best solution for your requirements.
Send
Once the plan is designed, simply send us the part(s).
Scan
After delivery, we will measure your part(s) and perform analysis according to your needs.
Results
We’ll return the part(s) and provide a complete analysis, images, and tables.
